Product Overview |
|
| |

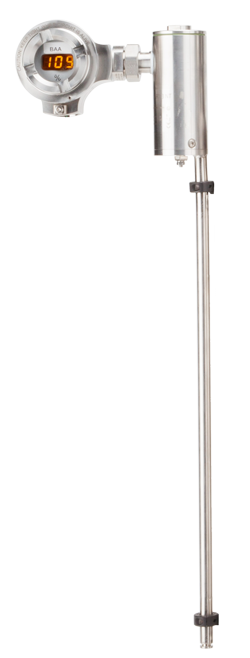

The high-precision and robust EVEREST level sensor is designed to provide continuous gauging of liquid media levels in tanks. The measuring principle used by the sensor exploits the physical effect of magnetostriction and is largely unaffected by temperature. Magnetostriction is particularly ideal where level measurements are required to be extremely accurate, e.g. in the chemical industry. |
|
| |
|
| |
|
| |
|
| |
|
|
| |
Specification |
|
| |
The level sensor outputs measuring signals in the range 4 to 20 mA. Available in lengths of 200 to 6,000 mm, it is compatible with a variety of tank dimensions. It also comes in the following versions:
|
|
| |
 Version for installation on a bypass with magnetic float. |
|
| |
Version with flange. |
|
| |
Version with screw-in unit for infinitely variable positioning of the level sensor. |
|
| |
|
|
| |
MOC |
|
| |
Stainless Steel 316 TI |
|
| |
Stainless Steel 316 L |
|
| |
Hastelloy * C276 |
|
| |
|
|
