Bliss Anand Energy Equipment

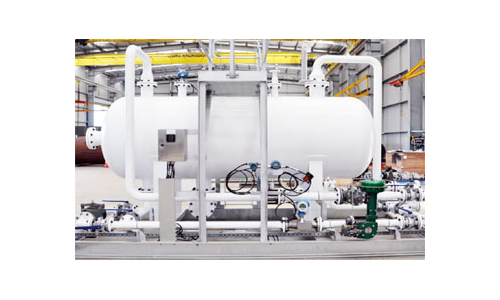

2/3 Phase Separator System/Skids

Specification

Primary equipment for Separation of Liquid & Gas (Two Phase) or Oil, Water & Gas (Three Phase) from Oil Well Stream.
Designed & Manufactured as per API 12J.
Internal Inlet Impingement Baffles, Wave Baffles, Flow Straightening Baffles, Weirs, Mist Eliminators & Vortex Breakers provided for effective Separations.
Equipment adequately designed to allow sufficient retention period.
Controls & Instrumentation provided to accurately measure the Gas, Oil & Water Flow rates, regulate the Pressure and Monitor the levels of Oil, Water in the Separator.
Automated Liquid (Oil & Water) removal system provided.
Large Size / Pressure Range.
Compact, Skid Mounted System can also be provided.

2/3 Phase Separator System/Skids

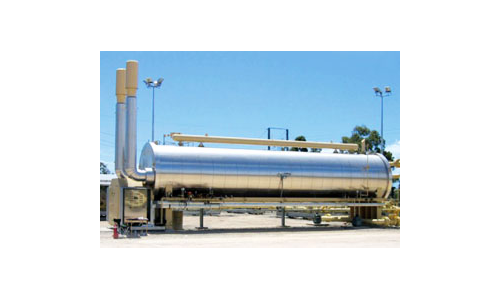

Indirect Water Bath Heater

Specification

Gas Fired Indirect Water Bath Heaters designed in full compliance to API 12K specifications.
Natural Draft Burners, directly mounted on Fire Tube. Forced Draft Burners also provided as per requirement.
Precise temperature control of Water Bath.
Equipment adequately designed to allow sufficient retention period.
Removable Single or Twin Fire Tube Design.
Removable Heating Coil for ease of maintenance.
Burners System complete with Pilot, Main Burner, Gas Train, Spark Igniter with Transformer provided.
Flame Arrestors at Burners Air Intake and Stack Top provided.
Large Heating capacity upto 5 Million K.Cal/Hr.

Indirect Water Bath Heater

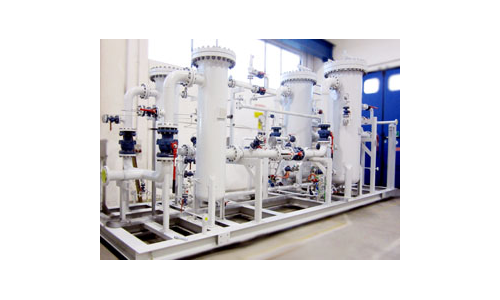

Gas Conditioning, Regulating & Metering System

Specification

Ensures supply of Dry and Dust Free Gas.
Generally it comprises of a 1 × 100% Knockout Drum & 2 × 100% Filter Separators together with Indirect Water Bath Heater (as per service requirement) complete with Interconnecting Piping, Valves, Instrumentations, Electrical and PLC based Control Panels for unattended & smooth operation.
Separation and Removal of Liquid from the Gas Stream.
Compact, well-engineered skid mounted layout to facilitate easy access to all Valves, Instruments & Filter Elements.
Condensate Tanks & Vent Stack also provided.
Stainless Steel piping used downstream of Filter Separation System to ensure contaminant free pure gas.

Gas Conditioning, Regulating & Metering System

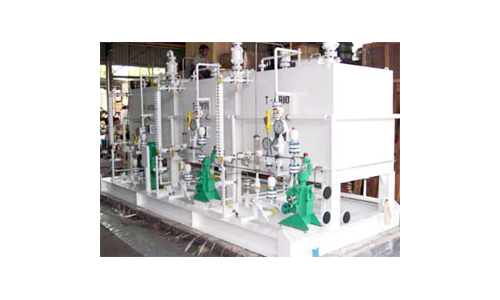

Chemical Injection Skid

Specification

The Chemical Injection Systems are mainly used to inject a precise and accurate amount of chemical into a system with the required back pressure, continuously or at intersvals.
Applications cover a spectrum of typical process requirements such as:
Asset Integrity: Biocides, Corrosion Inhibitors, Scale Inhibitors, Oxygen Scavengers.
Flow Assurance: Hydrate inhibitors, Emulsion Breakers,
Refinery: Corrosion Control, Fouling Control and Fuel additives etc.
We specialize in Design and Fabrication of Transportable/Permanent, Skid Mounted Chemical Injection Systems.
These systems are built to customer requirement and in accordance with international design codes/standards.
Pump selection, material of construction compatibility with chemical. Use of proven system component, 3D modelling to check case of operation and maintenance etc. are some of the key design features of our system.
We offer:

Single point or multipoint Injection Systems.
Discharge rates from 0.1 to 300 LPH and discharge pressures from 0.1 to 10,000 psi.

Chemical Injection Skid

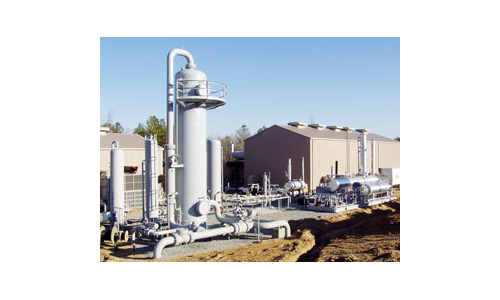

Filter Separators/Dry Gas Filters

Specification

For removal of liquid / solid particles down to 1 micron with 99. 9% efficiency.
Horizontal / Vertical design.
High performance, proven make, coalescing type glass fiber elements used in primary section.
Secondary section provided with efficient impingement separators or mist eliminators to remove coalesced liquid.
Compact, well engineered skid mounted layout to facilitate easy access to all Valves, Instruments & Filter Elements.
In horizontal filter separator down comers from primary and secondary sections pass liquid to sump to prevent re-entry.
Large liquid collection volumes.
Equipment provided with quick opening closures for quick access to filter elements.
Provision for automated liquid level monitoring & liquid removal.

Filter Separators/Dry Gas Filters

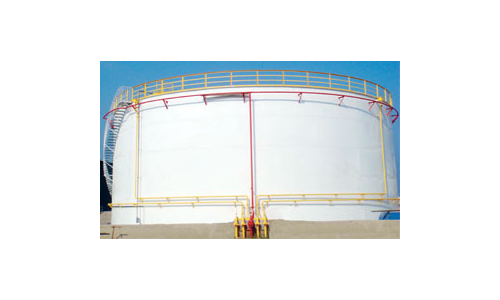

Hydrocarbon Storage Tank

Specification

Design, engineering, procurement and fabrication of above ground steel storage tanks with complete in-house design facility for floating, cone & dome roof tanks as per API 650.
Supply includes tank protection systems like fire protection, rim seal fire protection, and cathodic protection systems.
Procurement & supply of tank accessories like flame arrestors, side entry mixers, radar gauges, level instruments, heating coils & other instruments as per engineering requirement.
Technical support & assistance provided by trained personnel during erection & commissioning.

Hydrocarbon Storage Tank

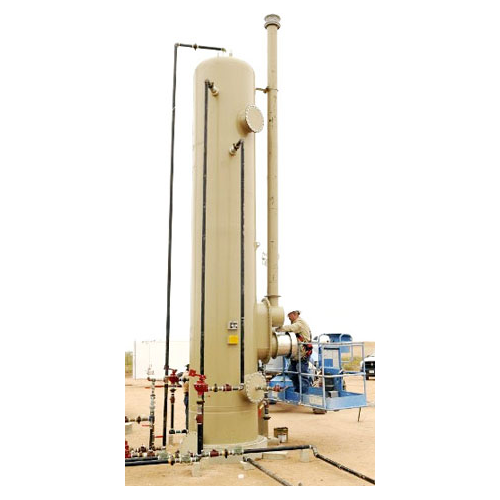

Heater Treater

Overview

Bliss Anand Heater Treaters are designed to carry out the process of oil-gas separation, free water removal, heating, settling and washing of crude oil all within a single compact unit.

The heater treater is skid mounted and complete with valves, instruments and accessories to ensure safe and reliable unattended operation.

Specification

Gas separation section designed to "thin film" entering emulsion for quick gas break out.
Immersed downcomer piping from gas separation section to emulsion spreader serves as an effective heat exchanger to preheat incoming emulsion and cool the clean oil.
Deep Freewater Knockout sections below the firebox provides isolation and draw off free water, thereby avoiding unnecessary heating of water and conserving fuel.
Controls & Instrumentation provided to accurately measure the Gas, Oil & Water Flow rates, regulate the Pressure and Monitor the levels of Oil, Water in the Separator.
Quick adjustable outside water siphon provides easy interface control over a wide range of water and oil specific gravities.
Adequate surge volume in the clean oil section relieves heading overload in gas separation section eliminating the possibility of liquid carry-over with the gas.
High capacity firebox furnishes abundant heat and quick response to thermostatically controlled demand.

Heater Treater

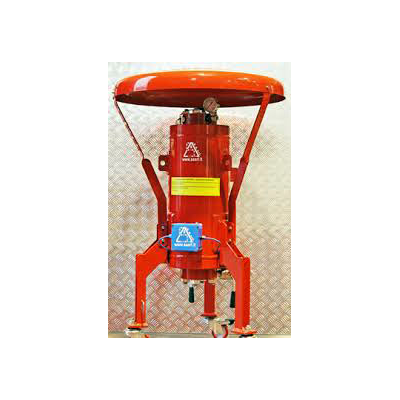

Rim Seal Fire Protection System

Specification

Designed to automatically detect and extinguish fire at the infancy stage.
Operates on the principle of arresting chain reaction.
Precise temperature control of Water Bath.
Non-electrically operated, Remote surveillance facility.
No water supply needed.
Modular design with option of Foam Based or clean gas based.
Unlimited shelf life of CF3I.
System is mounted on the roof of the tank and can be installed while the tank is in service.
Global technology.
Suitable for lightning prone areas.
System Complies to NFPA 2001, EPA standards.
Instrumentation Complies to NFPA 2001, Ex 112 GEX ia II T5 standards.
