Product Overview

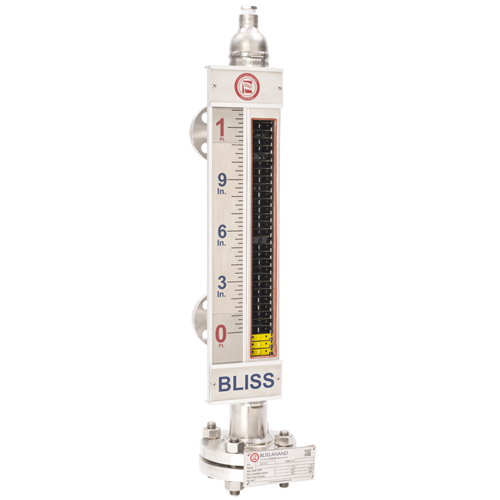

Bliss Anand Magnetic Level Gauges are highly accurate, low-maintenance alternatives to sight glasses and other outdated level indicators. They provide redundant, non-invasive level indication while eliminating leak points and fugitive emissions. Their robust design is ideal for high temperatures, high pressures and corrosive services. Bliss Anand gauges are easy to install and require no extra piping in most applications.

Specification

Cage - 2-3" NB Pipe: SS-316 / 316L/Alloy 625 / Alloy 825 / 904L / UNS - 31254 / MONEL 400 / Titanium / Host C276, other materials. Max Center to Center Dist.- 60ft./18.28m. Max Depth of Top Mounted - 20 ft/6000mm (Style H). Connecting Flanges - ANSI B16.5. Max. Viscosity - 500 CST. Pr. Rating - 200 bar/3000 PSI Maximum. Max Opr. Temp. - 1000°F for SS-316/316L/Alloy 625/ Alloy 825 / 904L / UNS - 31254 80°C/176°FforPVDF 40°C/104°FforPVC. Min Sp.GR of Service liquid - 0.30. Min Diff in Sp Gr Between Interface Liquid - 0.10 (less than 0.10 consult factory). Accuracy - ±10mm/3/8".

Product Overview

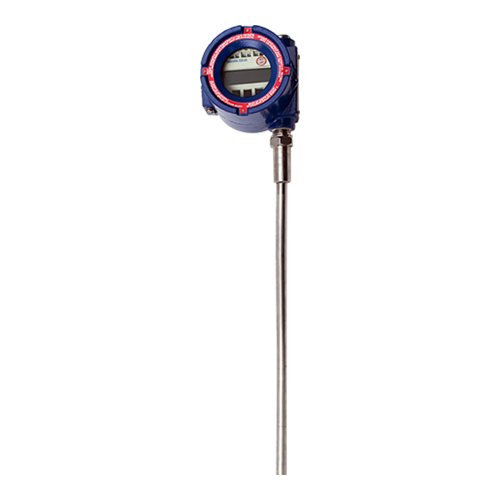

This high-accuracy transmitter uses magnetostrictive technology to allow customers precise readings of product and interface levels, as well as temperature measurement of a tank from just one process opening.

Specification

High accuracy and repeatability 4 to 20 mA HART. Two channel output (Level & Interface). Explosion-proof and Intrinsically safe. FM & CSA approval. Enclosure rating to NEMA 4X

Product Overview

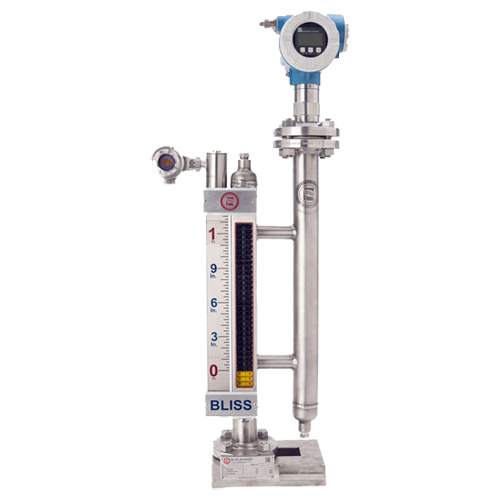

Bliss Anand instrument chamber is designed to the ASME B31.3 standard, and is Pressure Equipment Directive (PED) complaint. Weld neck flanges and full penetration welds in accordance with EN ISO 15614-1:2004 and ASME Boiler and pressure Vessel Code Section IX are used throughout. All welders are qualified to EN 287-1:2004 and ASME Boiler and pressure Vessel code section IX. All construction materials have full traceability in accordance with the EN 10204 type 3.1 certificates. Every chamber is hydro-tested as standard. There are two designs available: the Standard Design and T-piece Design.

Specification

Allows external mounting of process level instrumentation. Ideal for critical area and general purpose applications. Power, Petro-Chemical, Refining, Oil & Gas, Chemical and Process Steam. 38 years of experience in designing and manufacturing chambers in accordance with international codes. Variety of process connections and optional drain and vent connections. Used by major industries worldwide. Enables live maintenance. Designed to ASMEB31.3. Pressure Equipment Directive (PED) complaint. Custom designs service available. For use in applications up to ASME B16.5 Class 2500 and EN1092 PN250. Available in carbon steel, stainless steel and other alloys.

BlissFlex 2200 Series

Product Overview

The BlissFlex 2200 Guided Wave Transmitter is used for measuring distance, level, volume and mass. It is reliable and frequently used for common applications.

Specifications

Accuracy +/- 0.12". Measurement range up to 130 feet. Output 4-20 mA HART / FF / Profibus PA. Explosion-proof and intrinsically safe. Enclosure rating to NEMA 4X. SIL2, CRN approval. Meets high pressure high temperature requirements.

BlissWave 5200 Series

Product Overview

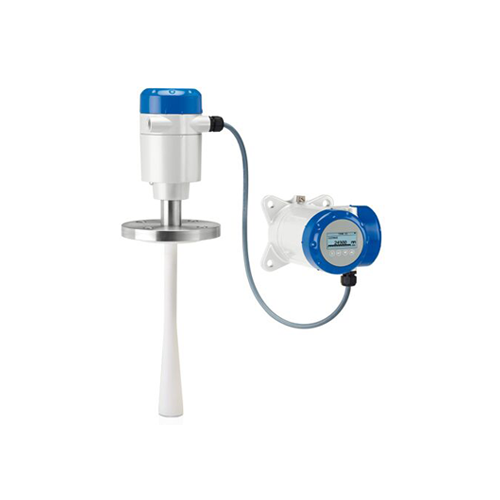

Our BlissWave 5200 Series is a radar meter for liquid applications. The design incorporates a unique locking system and antenna extensions to allow compatibility with various mounting positions and applications.

Specifications

High accuracy and repeatability. Measurement range up to 98 feet. Output 4-20 mA HART / FF / Profibus PA. Explosion-proof and intrinsically safe. Enclosure rating to NEMA 4X. CRN approval. Meets high pressure high temperature requirements.

Product Overview

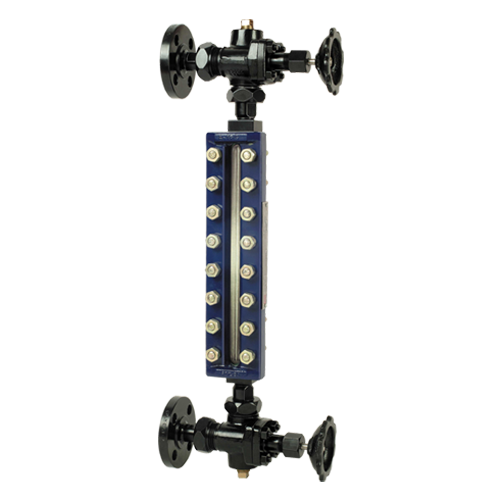

Bliss Anand Level Gauge standard construction includes a solid one-piece chamber machined from carbon steel with covers, toughened glass and chrome molybdenum bolds and nuts. All metal parts are rust proofed. Recessed gasket seat prevent movement and insure leak-free service.

Specification

Sturdy Construction For clear liquids. High Pressure 4000 PSIG @ 100 Deg.F. Clear line of seperation visible from a distance. Variety of materials and Configuration. Visible length from 200 mm to 3000 mm.

Product Overview

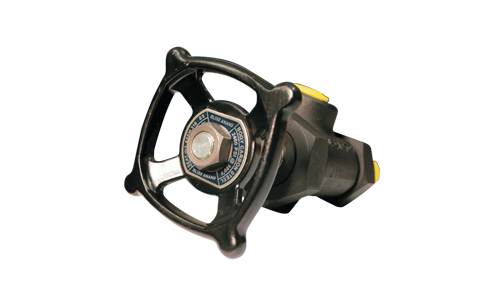

Recommended for use with Bliss Anand Liquid Level Gauge Series and is compatible with all armored flat glass Liquid Level Gauges.

Specification

Stainless stell ball check located upstream of the seat instantly shuts off flow in case of gauge glass break. Union gauge connection enables gauge removal without removing the gauge valves. Standard unit consist of ASTM A105 forged carbon steel body,316/416SST stem, grafoil packing, 316 SST ball check, steel handle and ½" FNPT vent & drain.

Product Overview

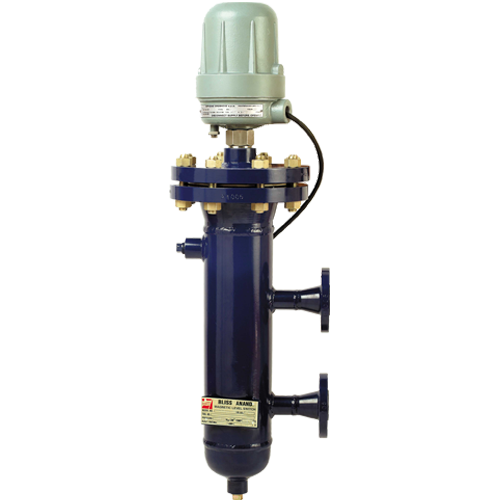

Bliss Anand Type 2 & 3 switch mechanism are fitted with magnetically operated snap-action contact switches. The Bliss Anand switches operating mechanisms are constructed entirely in AISI304 stainless steel and fitted with a terminal board of resin suitable for high temperature applications. These two switches mechanism differ in the type of snap-action switches fitted and cover a wide range of applications and operating conditions.

Specification

Special coating and linings. Special testing inspection and certification. SPECIAL MATERIALS such as low temperature steel, AISI 316 L stainless steel, inconal, monel and PVC for chambers. AISI 316 L, inconal, hastelloy, monel, teflon etc. for internal parts. SPECIFIC CONNECTIONS. SPECIAL MODELS for very high pressure. EXTERNAL CHAMBER for series 7700 models.

Product Overview

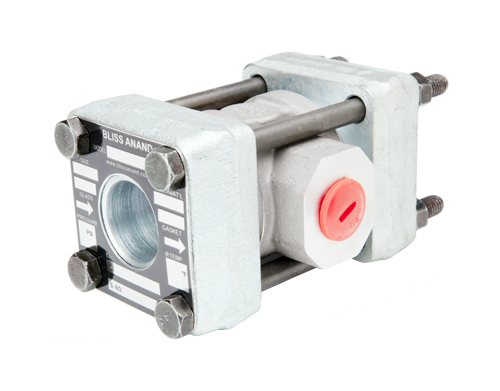

Bliss Anand Sight Flow Indicators provide an effective way to view the condition of liquids or solids flowing through pipelines at most any flow, pressure, or temperature, a major advantage over electronic devices where it is difficult to distinguish if there is a flow problems or malfunction in the device. Bliss Anand Sight Flow Indicators assure a direct and positive indication of flow rate, flow direction and condition of the medium being transported plus enable a means of inspecting pipelines for dirt, scale and foreign matter.

Specification

To observe colour,clarity and flow of process liquids. Variety of indicating elements. Mounting can be screwed or flanged. Installation vertical or horizontal. Variety of materials. Full view or double window type
